Products => Terminal => 150 Series Terminals => Tab TT380 straight Series
กก

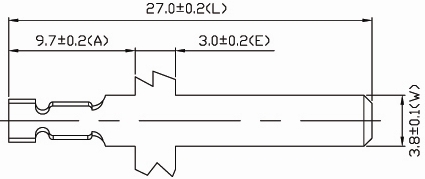

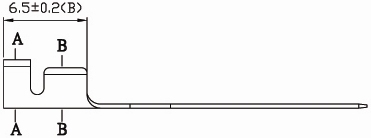

Part No Applicable wire Material Finish Qty / Reel Approval
AWG mm2
TT3802701-30 22-18 0.3-0.8 Brass Natural 10000 ----
TT3802702-30 22-18 0.3-0.8 Brass Tinned 10000 ----

 Note :

 1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.

 2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
