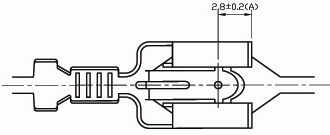

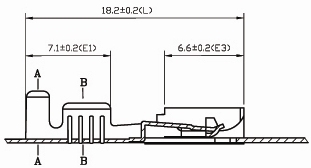

| Products => Terminal => Receptacles RE636 straight Series |
| กก |
|
|
|
|
|
|
| Part No | Applicable wire |
Fit Tab Thickness (mm) |
Material | Finish | Qty / Reel | Approval | |
| AWG | mm2 | ||||||
| RE6360802-30P | 22-18 | 0.3-0.8 | 0.8 | Brass | Tinned | 5000 | E116143 |
Note :
1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.
2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
