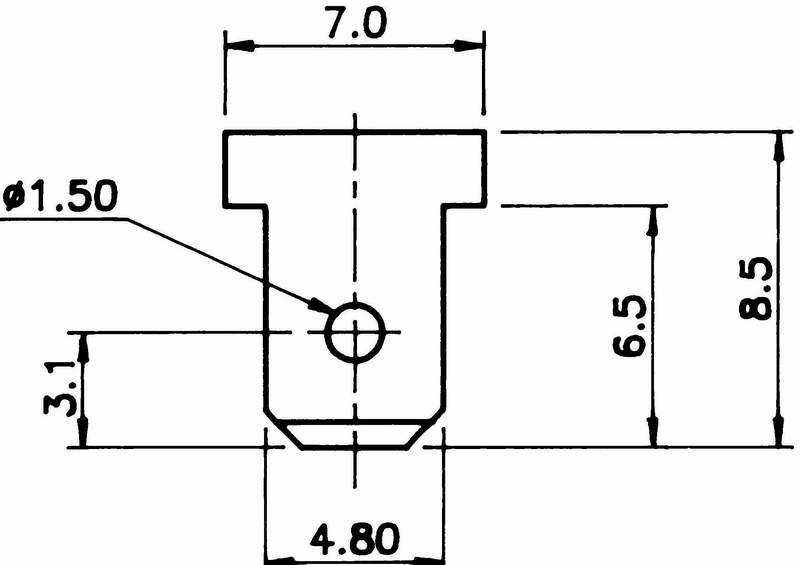

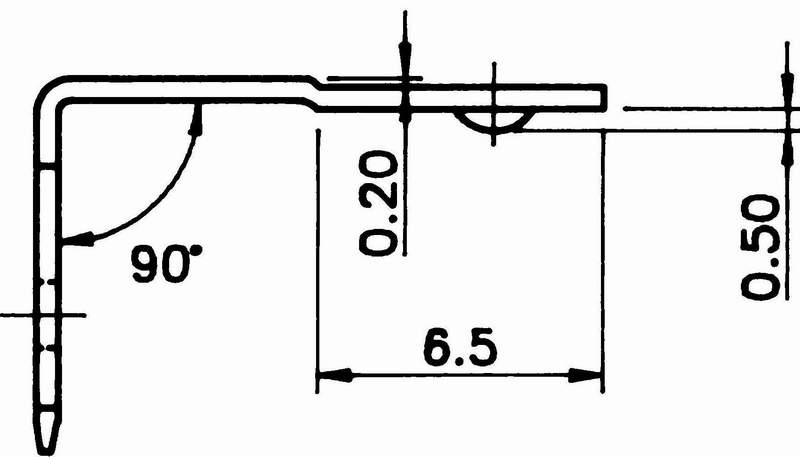

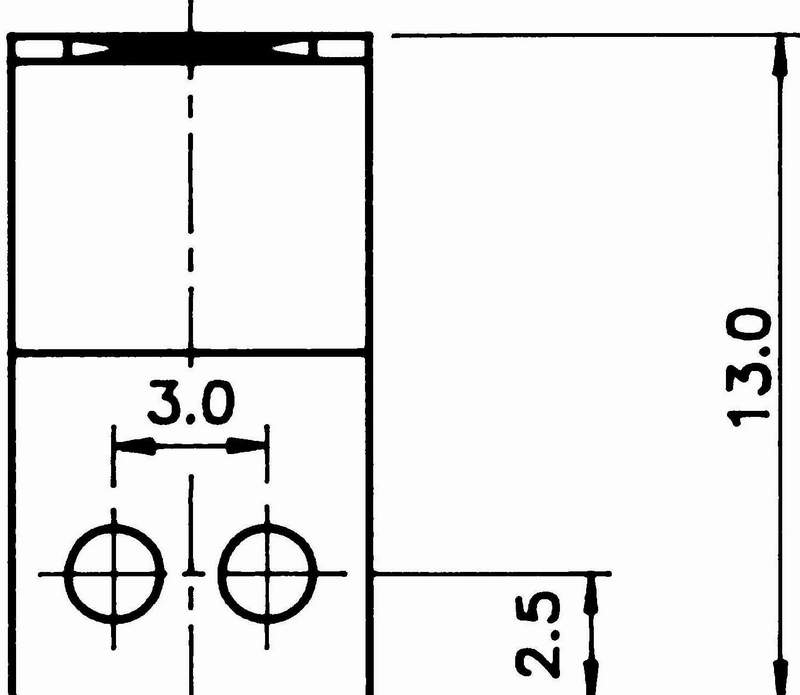

| Products => Terminal => MT4820503-50P Mounting Tab terminal series |
 |
 |
 |
| Part No | Dimensions (mm) |
To fit receptacle width (mm) |
Material | Finish | Qty / Bag | Approval | |
| L | W | ||||||
| MT4820503-50P | 13.0/8.5 | 7.0 | 4.8 | Steel | Nickel | 2000 | ---- |
Note :
1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.
2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
