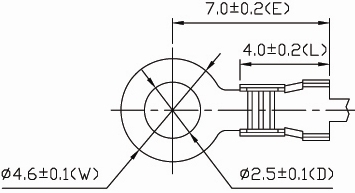

| Products => Terminal => RI 460 ring terminals Series |
|
|
|
|
|
| Part No | Applicable wire | Diameter(mm) | Material | Finish | Qty / Reel | Approval | ||
| AWG | mm2 | OD | ID | |||||
| RI4602501-30 | 24-22 | 0.2-0.3 | 4.6 | 2.5 | Brass | Natural | 30000 | ---- |
| RI4602502-30 | 24-22 | 0.2-0.3 | 4.6 | 2.5 | Brass | Tinned | 30000 | ---- |
| RI4602503-30 | 24-22 | 0.2-0.3 | 4.6 | 2.5 | Steel | Nickel | 30000 | ---- |
| RI4602505-30 | 24-22 | 0.2-0.3 | 4.6 | 2.5 | St.Steel | Natural | 30000 | ---- |
| RI4602501-40 | 24-22 | 0.2-0.3 | 4.6 | 2.5 | Brass | Natural | 30000 | ---- |
| RI4602502-40 | 24-22 | 0.2-0.3 | 4.6 | 2.5 | Brass | Tinned | 30000 | ---- |
Note :
1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.
2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
