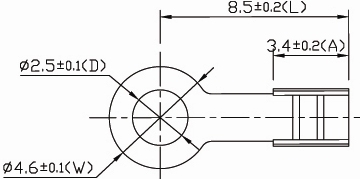

| Products => Terminal => RJ46125 ring terminals Series |
|
|
|
| Part No | Applicable wire | Diameter(mm) | Material | Finish | Qty / Reel | Approval | ||
| AWG | mm2 | OD | ID | |||||
| RJ4612501-40 | 24-20 | 0.2-0.5 | 4.6 | 2.5 | Brass | Natural | 10000 | ---- |
| RJ4612502-40 | 24-20 | 0.2-0.5 | 4.6 | 2.5 | Brass | Tinned | 10000 | ---- |
| RJ4612503-40 | 24-20 | 0.2-0.5 | 4.6 | 2.5 | Steel | Nickel | 10000 | ---- |
| RJ4612504-40 | 24-20 | 0.2-0.5 | 4.6 | 2.5 | Brass | Nickel | 10000 | ---- |
Note :
1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.
2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
