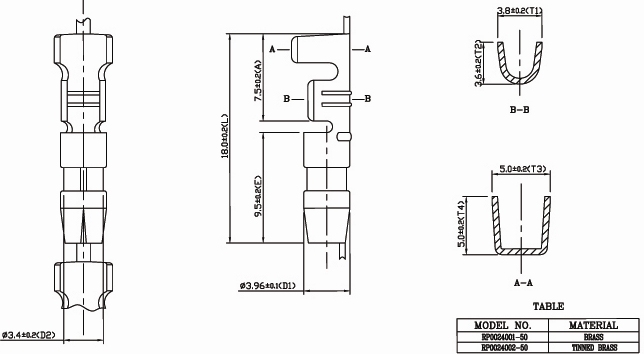

| Products => Terminal => RP0024 Bullet terminal Series |
|
|
| Part No | Applicable wire | Diameter (mm) | Material | Finish | Qty / Reel | Approval | ||
| AWG | mm2 | OD | ID | |||||
| RP0024001-50 | 18-14 | 0.8-2.1 | 3.96 | 3.4 | Brass | Natural | 6000 | ---- |
| RP0024002-50 | 18-14 | 0.8-2.1 | 3.96 | 3.4 | Brass | Tinned | 6000 | ---- |
Note :
1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.
2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
