| Products => Terminal => ST2612 Splice terminal series |
 |
 |

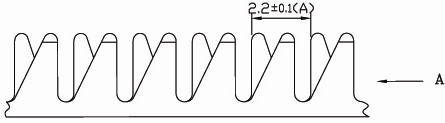

| Part No | Applicable wire | Dimensions (mm) | Material | Finish | Qty / Reel | Approval | ||
| AWG | mm2 | L | W | |||||
| ST2612001-27 | 18-16 | 0.5-1.3 | 2.2 | 3.1 | Brass | Natural | 180000 | ---- |
| ST2612002-27 | 18-16 | 0.5-1.3 | 2.2 | 3.1 | Brass | Tinned | 180000 | ---- |
Note :
1. Receptacles denoted by (2) is used only for two wires, If using wires in other combinations than the ones shown above, please contact Utilux South China Ltd.
2. Combine a plated straight receptacle with a plated tab and a non-plated receptacle with a non-plated tab.
